DuoModo xMac mini/eGPU Rackmount System (Pre-configured System)
Part No. DM-ZM-GPU-R
DuoModo xMac mini/eGPU Rackmount System
Learn More About DuoModo Modular Thunderbolt Expansion Systems
Learn why Sonnet's Pro Products Rely on Thunderbolt 3 Technology for Maximum Performance
(Complete DuoModo Enclosure + Modules System)

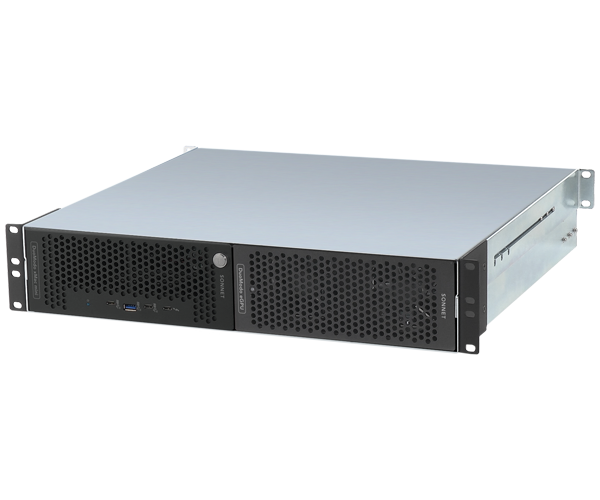

DuoModo xMac mini/eGPU Rackmount System
Mac mini Integration + eGPU Expansion
The pre-configured DuoModo™ xMac™ mini/eGPU Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one eGPU module.
Key Features
System Configuration
- For Intel® Mac mini
Dual-Module Rackmount Enclosure
- Dual-module 2U Rackmount Enclosure
- Rugged Steel Construction
- Same Enclosure Used in Echo™ III Rackmount
- 19 inches Wide x 16.5 inches Deep x 3.5 inches High
- Included Rack Rails Support Installation in Racks 16-24" Deep
xMac mini Module
- Securely Holds Intel Mac mini (sold separately) in a Rugged Steel Frame
- Open Access to the Computer’s Ports in Back
- Built-in Thunderbolt™ 3 Dock
- Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
- Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
- One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
- Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
- Temperature-controlled, Variable-Speed Fan Offers Quiet Operation
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
eGPU Module
- Supports the Latest Thunderbolt Compatible GPU Cards ( View PDF of Supported GPU Cards)
- Supports 2.5-slot Width GPU Cards
- 800W Future-proof Design
- Includes Two 8-pin (6+2 pin) Auxiliary Power Connectors
- Dual Temperature-controlled, Variable-speed Noctua fans rated at 17 dbA
- 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed GPU Card
- Power Cable Included
- Thunderbolt 3 (40Gbps) Cable Included
- ThunderLok 3 Thunderbolt Connector Retainer Clip Included
Why Sonnet?
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made in the USA
WARNING: California's Proposition 65
Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
