Echo 13 Thunderbolt 5 SSD Dock (1TB)

Part No. ECHO-DK13-1TB5

Built for Blazing-Fast Storage

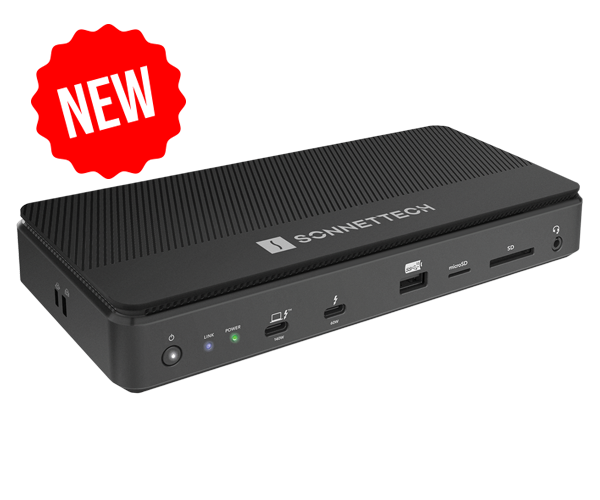

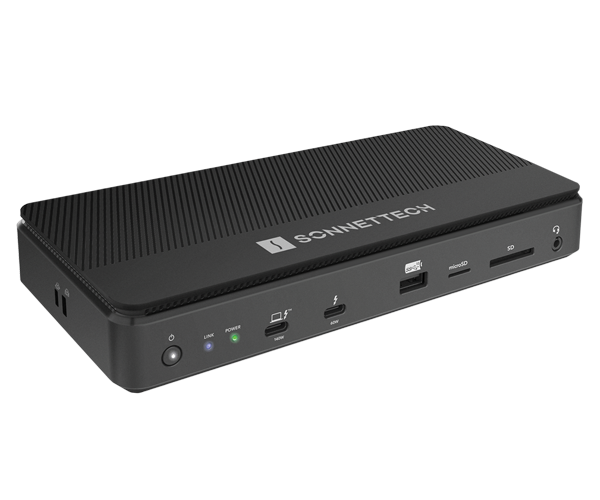

Echo 13 Thunderbolt 5 SSD Dock

Universal Thunderbolt 5 Dock with 1TB of Built-in Internal M.2 NVMe SSD Storage

Ridiculously Fast SSD Speeds

Sonnet Echo™ 13 Thunderbolt 5 SSD Dock supports next level storage performance — up to 6600 MB/s with Thunderbolt™ 5 computers, 3400 MB/s when used with a Thunderbolt 4, 3, or USB4 computer. Connections? Echo 13 has you covered with four Thunderbolt 5 ports, four USB-A ports, one 2.5Gb Ethernet port, one headphone jack, SD and microSD card slots, plus 8K display support.

Plug In Your Peripherals and Power Your Computer with One Thunderbolt 5 Cable

Connect your Thunderbolt devices, monitor(s), USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? Echo 13 Thunderbolt 5 SSD Dock will even power it with up to 140W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

Thunderbolt 5: Tomorrow’s Performance. Today.

Echo 13 Thunderbolt 5 SSD Dock features the connections you expect from a Thunderbolt dock plus the ridiculously fast SSD storage capability you need. Transform a single cable connection from your computer into three Thunderbolt 5 peripheral ports, four USB-A ports, one 2.5Gb Ethernet port, and more. With 80 Gbps of bi-directional data speed — twice as fast as Thunderbolt 4 — and 120 Gbps for higher display bandwidth, you'll revolutionize your productivity.

Ridiculously Fast 1TB M.2 NVMe Internal SSD Storage

With a Thunderbolt 5 Certified 1TB Kingston SSD already installed, Echo 13 dock deliver up to 6000 MB/s peak data transfer speeds when connected to a Thunderbolt 5 computer, providing great performance for content creation, application storage, and large media libraries.

Works Practically with Any M.2 NVMe SSD: With few exceptions, the currently-shipping Echo 13 Thunderbolt 5 SSD Dock (with a serial number starting with “B”) is compatible with all standard M.2 NVMe SSDs — including both single- and double-sided designs — without heatsinks. If you purchased an Echo 13 dock equipped with a Kingston SSD and with a serial number starting with “A”, see official product page Tech Specs for additional SSD compatibility information.

Faster Ethernet Transfers Across Existing Cabling

Featuring 2.5 Gigabit Ethernet, Echo 13 Thunderbolt 5 SSD Dock supports 2.5Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains — 250 percent the speed of Gigabit Ethernet — without rewiring! In case you’re connecting to a switch or NAS without 2.5Gb Ethernet support, the Sonnet dock also supports 1 Gbs ink speeds.

Speedy 10Gbps USB Ports for Bus-powered Devices

Echo 13 Thunderbolt 5 SSD Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports — one on the front, two on the back— to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 13 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Thunderbolt Certified for Mac, Windows and Chromebook Computers, and iPad Pro Tablets

Echo 13 Thunderbolt 5 SSD Dock is certified for use with all Apple M series Mac computers, and Thunderbolt 3 Intel Macs; Thunderbolt 5, 4, and USB4 compatible Windows and Linux computers; and M series iPad Pro tablets. See official product page Tech Specs for current computer and OS compatibility information.

Display Options: Connect 4K, 5K, 6K, and up to 8K Displays via Thunderbolt

Depending on your computer’s graphics capability, the Echo 13 dock’s Thunderbolt ports can support as many as four displays — at 4K, 5K, or 6K resolution, and up to 8K. See official product page Tech Specs for details.

Connect Thunderbolt 5, 4, 3, or USB-C monitors directly, or use Thunderbolt-compatible adapters (sold separately) to connect HDMI, DisplayPort, and other display types.

Displays Compatibility PDF – View how many displays you can use with your computer.

Charge Your Laptop Without Its Power Adapter

Connected to your portable computer with the included Thunderbolt 5 cable, Echo 13 Thunderbolt 5 SSD Dock provides up to 140W of power (Power Delivery), meaning it can power and charge your computer while connected, even when not in use.

Peripheral Power: Handy Charging Ports

Echo 13 Thunderbolt 5 Dock front panel Thunderbolt 5 peripheral port provides 60W of power to quick charge your iPhone, iPad, or other device that charges via USB, even when your computer is off or sleeping. The two rear panel Thunderbolt 5 peripheral ports provide 15W and all three 10 Gbps USB-A ports provide 7.5 watts of power for charging those devices, too.

Connect and Secure

Thunderbolt 5 Cable Included. Sonnet includes a Thunderbolt cable with Echo 13 Thunderbolt 5 SSD Dock that supports Thunderbolt 5’s maximum bandwidth and power charging capability. This cable is compatible with all Thunderbolt 5, 4, 3, and USB4 computers.

Kensington Security Lock Ready. With terabytes of valuable data inside, you may want to secure the Echo dock with a Kensington Security Lock (sold separately).

Key Features

• One Cable Peripheral Connection – Instant access – plug peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.
• Twelve External Interfaces – Includes four Thunderbolt 5 ports, three USB 3.2 Gen 2 Type A charging ports, one USB 3.2 Gen 1 Type A port, one RJ45 2.5 Gigabit Ethernet port, and one 3.5 mm combo audio jack; one SD card slot and one microSD card slot.
• M.2 NVMe SSD Slot – Includes Thunderbolt 5 Certified 1TB Kingston SSD of internal storage with up to 6600 MB/s performance – perfect for content creation, media storage, and backups.
• Three Thunderbolt 5 Ports for Peripherals – Connects three Thunderbolt 5, 4, or 3 peripherals. Also supports USB4 V2, USB4, and USB3 devices.
• Powerful 10 Gbps USB Type A Ports – Three 10 Gbps USB 3 ports provide 7.5W of power each, supporting super-fast 10 Gbps USB NVMe SSDs at up to full speed.
• Connect as Many as Four Displays via Thunderbolt – Depending on your computer, connect as many as three Thunderbolt displays directly, and daisy chain a fourth (see official product page Tech Specs for details). Supports HDMI and DP displays with Thunderbolt-compatible adapters (sold separately).
• Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays @ up to 500Hz – Depending on your computer, supports up to two 8K displays, or three or four 4K, 5K, or 6K displays (see official product page Tech Specs for details).
• Charge Your Laptop – Provides up to 140W through the included Thunderbolt 5 cable to power and charge your laptop.
• Read SD and microSD Cards – Compatible with all SD and microSD card types; supports 320 MB/s read speeds with UHS-II SDXC cards.
• Kensington Lock Read – Safely secure your Echo 13 dock and its valuable data with a Kensington Security Lock (sold separately). Equipped with both Kensington Standard and Nano Security Slots.
• Compatibility – Compatible with all M series Macs, and Intel Macs with Thunderbolt 3 ports; Thunderbolt 5, 4, and USB4 compatible Windows and Chromebook computers; and M series iPad Pro. See official product page Tech Specs for detailed computer and OS compatibility information.
• Package Contents – Echo 13 Thunderbolt 5 SSD Dock; power adapter; region specific power cable; 0.8-meter Thunderbolt 5 cable; and documentation.
• Warranty – 2-year product warranty.

• Customer Support – Lifetime technical support.
• The Sonnet Advantage – Innovating technology since 1986.


Technical Notes

(1) See official product page Tech Specs for details.
