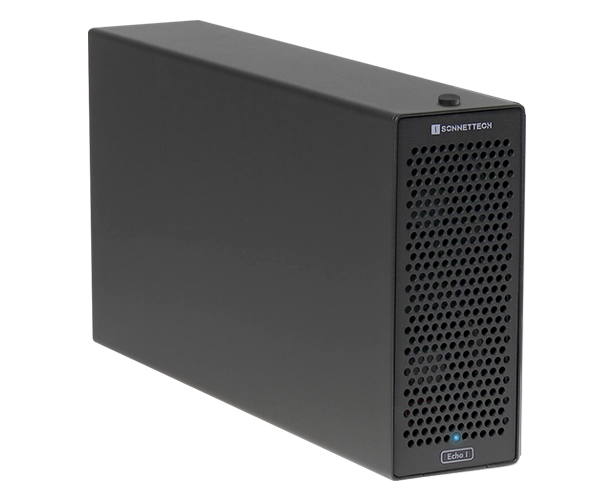

Echo I Desktop (1-slot PCIe Card Expansion for Full Size Cards)
Echo I Desktop
1-slot Desktop Thunderbolt to PCIe Card Expansion System for Computers with Thunderbolt 4 or Thunderbolt 3 Ports
Connect One Full- or Half-length, Single- or Double-width PCIe Card to Your Computer
For many creative pros relying on recent portable, mini desktop and all-in-one computers to get their jobs done, their computers’ onboard processing power alone is not enough. While these Mac®, Windows®, and Linux® computers include high-performance Thunderbolt ports to support peripherals, they lack PCIe expansion slots to install a specialty card that adds needed storage expansion, video or audio inputs, transcodes data, or connects to high-speed shared storage and networks. Sonnet has a solution — the Echo™ I Desktop. This professional Thunderbolt™ to PCIe card expansion system enables you to connect one up to full-length (12.28 inches long) single- or double-width PCIe card to your computer via a single cable.
Supports Every Type of Thunderbolt Compatible PCIe Card
Echo I Desktop supports every type of Thunderbolt compatible PCIe 4.0, 3.0, 2.0, and 1.1 card available including video capture and transcoding; audio DSP; 6Gb or 12Gb SAS or SATA host bus adapter; 10Gb or 25Gb Ethernet; SSD storage; and other specialty types to your system.
Do you have a card in mind but aren’t sure it’s compatible? We’ve put together a PCIe Cards Compatibility PDF that identifies cards conforming to Thunderbolt technology requirements, and organized by fit and power compatibility with specific expansion systems.
Add a x16 PCIe Card Slot to Your Computer with Thunderbolt 4 and Thunderbolt 3 Ports, Including Mac Studio
Space and Power to Spare
The Echo I Desktop features one x16 PCIe 3.0 slot, enabling it to support a huge variety of cards, whether single- or double-width, low-profile or full-height. To support power-hungry cards, it integrates a universal 400W power supply and includes a 150W 8-pin (6+2 pin) auxiliary power connector for cards that require extra power (including the Avid Pro Tools | HDX). The Echo I powers on and off automatically with the connected computer, saving energy in the long run. With no power switch, you can’t forget to turn off the system!
Dual Fans. Ultra-quiet Operation.
Featuring dual Noctua fans, the Echo I Desktop is designed to deliver ultra-quiet operation so that it can be comfortably used in noise-sensitive environments. Rated at 17.1dBA — below the 20dBA ceiling prescribed for use in recording and broadcast studios — the fans spread the spectrum of their noise to minimize the impact at any single frequency. To further ensure negligible noise levels, the fans are temperature-controlled, automatically speeding up and slowing down smoothly as needed, and the enclosure is engineered to optimize airflow over the installed card to cool the system effectively and efficiently.
Thunderbolt Cable and Sonnet ThunderLok 3 Thunderbolt Cable Retainer Clip Included
Sonnet includes a Thunderbolt cable that supports Thunderbolt’s full 40Gbps bandwidth, and is fully compatible with Thunderbolt 4 and Thunderbolt 3 computers. Sonnet also provides a ThunderLok™ 3 Thunderbolt connector retainer clip that prevents accidental cable disconnections — just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
Thunderbolt Compatibility – For computers with Thunderbolt 4 or Thunderbolt 3 ports.
Number of PCIe Slots – One x16 PCIe 3.0 slot.
Supported PCIe Card Dimensions – Supports one half- or full-height, single- or double-width up to full-length PCIe card.
Broad PCIe Card Compatibility Support – See Sonnet’s PCIe Cards Compatibility PDF.
- Avid Support – Avid® Pro Tools | HDX compatible.
Pro Power Supply – Integrated 400W power supply with 150W auxiliary power.
Remarkably Quiet – Noctua fans rated at 17dBA.
40Gbps Thunderbolt System – Offers four lanes of full PCIe bandwidth for the installed card.
- Thunderbolt 3 Technology for Maximum Performance – Thunderbolt 4 would be limited to one PCIe lane total. See Sonnet’s video Why Sonnet's High-Performance Pro Products Use Thunderbolt 3 Instead of Thunderbolt 4 for details.
- Number of Thunderbolt Ports – One Thunderbolt port (to host computer).
- Enclosure – Rugged aluminum housing.
- Energy Savings – Powers on/off automatically with the computer.
- Compatibility – Compatible with Mac, Windows, and Linux computers with Thunderbolt 4 or Thunderbolt 3 ports. See official product page Tech Specs for latest computer, OS, and support compatibility information.
- Dimensions (WxDxH) – 3.5 x 16.7 x 9 in. (8.9 x 42.4 x 22.9 cm).
- Weight – 9.7 lbs (4.40 kg).
- Package Contents – Echo I Desktop System, region specific power cable, Thunderbolt cable, ThunderLok 3 Thunderbolt connector retainer clip, and documentation.
- Warranty – 2-year product warranty.
- Customer Support – Free lifetime customer technical support.
- The Sonnet Advantage – Designed, engineered, and made in the USA.
