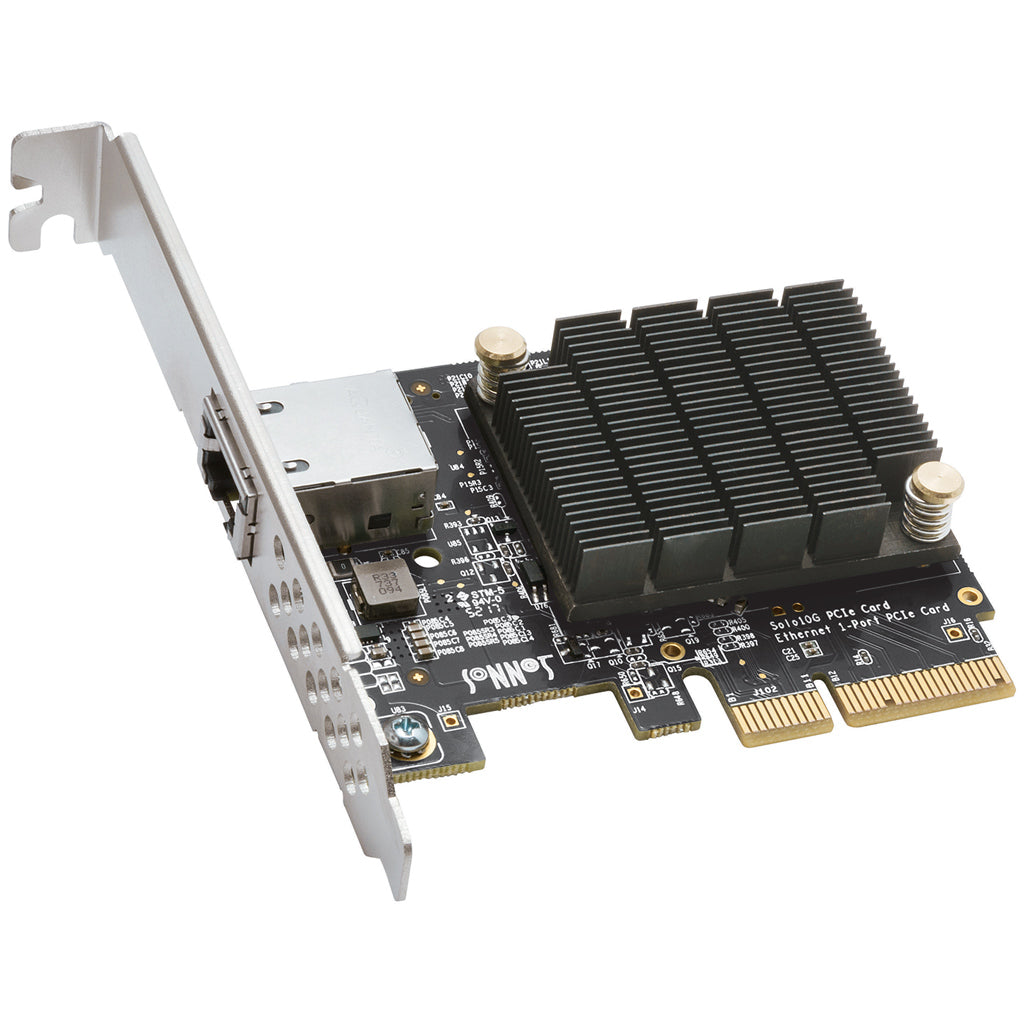

Solo10G PCIe Card (Single-port • 10GBASE-T)

Part No. G10E-1X-E3.

Blazing-fast 10GBASE-T Connectivity

Solo10G PCIe Card

Single-port 10GBASE-T Gigabit Ethernet Card for Mac, Windows and Linux Computers, and Thunderbolt Expansion Systems with PCIe Slots

Ultra-fast 10 Gb/s Network Connection

With recent advances in technology, plus increasingly affordable gear, the transition to capturing and outputting content at 4K and higher resolutions has happened fast — the need for faster than Gigabit Ethernet speeds to transfer all that data has accelerated equally fast. For post-production shared storage workgroups and other bandwidth-intensive workflows, 10Gb Ethernet is the new data transfer standard. Speeding its adoption, very affordable 10Gb Ethernet switches with RJ45 (copper) have significantly reduced the cost of setting up 10GbE infrastructure, but the price of adding client connectivity has remained a barrier for some. Now, there is an equally affordable 10Gb Ethernet interface for your desktop and workstation computers — Solo10G™ PCIe Card, Sonnets powerfully simple solution for adding blazing-fast 10GBASE-T 10GbE network connectivity to your Mac Pro^® tower (2010 - 2023), Windows^® PC and Linux^® desktop or server, or Thunderbolt™ Expansion System.

10x the Performance of Gigabit Ethernet

Solo10G PCIe Card is equipped with a single RJ45 socket, enabling you to connect your computer to 10GbE infrastructure via inexpensive CAT Cabling (sold separately) – CAT 6 cabling at distances up to 55 meters, or CAT 6A cabling at up to 100 meters.

Faster Transfers Across Existing Cabling Made Possible with NBASE-T Technology

Does your facility have CAT 5e wiring installed already? You can still get a great performance gain — up to 500 percent over Gigabit Ethernet speed — without rewiring! Solo10G PCIe Card supports the NBASE-T™ standard of 2.5/5 Gb link speeds over CAT 5e (or better) cabling when used with a Multi-Gigabit switch or router. This capability allows you to deploy the same card across an organization for users supported by different Ethernet cabling infrastructures.

Advanced Feature Support

Solo10G PCIe Card high throughput performance and low host-CPU utilization are attained through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfers or high I/O operations take place.

Simple Setup

How simple? Install Solo10G PCIe Card in your computer or Thunderbolt Expansion System, connect to the network switch or directly to 10GbE-enabled storage, and configure the card’s settings through operating system network device configuration tools.

AVB Support

Audio Video Bridging (IEEE 802.1Qav, AVB) support makes Solo10G card perfect for use in pro audio and video applications where synchronization of data streams is critical.

Includes Two Mounting Brackets

Solo10G PCIe Card is packaged with both full-height and low-profile mounting brackets, enabling installation of the card into any PCIe slot.

Optimized for Thunderbolt

Got a Thunderbolt connection, but no PCIe slot? This Ethernet PCIe card is ideal for use in one of Sonnet's Thunderbolt to PCIe Card Expansion Systems — the combo enables you to add ultra-fast 10GbE network connections to any supported computer with a Thunderbolt port.

Key Features

• Adds 10GbE Connectivity to Mac, Windows, Linux, and Thunderbolt Expansion Systems – Adds an RJ45 10 Gigabit Ethernet port to your computer or Thunderbolt Expansion System with PCIe slots.
• Optimized for Thunderbolt – Ideal for use in Sonnet Thunderbolt to PCIe Card Expansion Systems.
• Cost Effective – Low-cost PCIe card connects to 10GbE infrastructure via inexpensive CAT 6 or CAT 6A cables at distances up to 55 or 100 meters, respectively.
• Features NBASE-T Technology – 5 Gb/s and 2.5 Gb/s speeds supported over existing CAT 5e (or better) cabling at distances up to 100 meters.
• Supports AVB – Audio Video Bridging (IEEE 802.1Qav, AVB).
• Easy Setup – Configure using your computer’s operating system network device configuration tools.
• Compatibility – Compatible with Mac, Windows and Linux computers, and Thunderbolt Expansion Systems with PCIe slots. See official product page Tech Specs for latest computer, OS, and support compatibility information.
• Package Contents – Twin10G 10GBASE-T PCIe Card with two short-range SFP+ transceivers (up to 300 meters); low-profile PCIe bracket; and documentation.
• Warranty – 2-year product warranty.

• Customer Support – Free lifetime customer technical support.
• The Sonnet Advantage – Designed and engineered in the USA. Since 1986.
