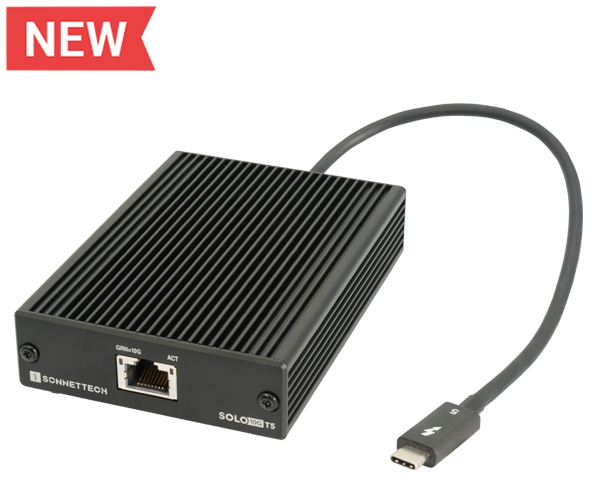

Solo10G T5 Thunderbolt 5 Adapter (Single-port • 10GbE • Thunderbolt 5)

Part No. SOLO10G-TB5

A New Era for 10GbE

Solo10G T5

10GBASE-T Thunderbolt 5 to 10 Gigabit Ethernet Adapter with Multi-Gigabit Support

10G Ethernet for the Thunderbolt 5 Generation

Solo10G^® T5 Thunderbolt™ 5 Adapter gives today’s Thunderbolt 5 computers a professional, full-bandwidth 10GbE network connection while maintaining broad compatibility with Thunderbolt 4, USB4, and Thunderbolt 3 computers. To achieve optimal data transfer speeds, the Solo10G T5 adapter’s Thunderbolt 5 interface provides the highest PCIe bandwidth available, more than enough to support full performance with any compatible computer. Bus-powered and compact, it delivers reliable 10GbE performance for high-speed file transfers, shared storage, video workflows, and demanding production networks.

Your Dedicated Connection to 10GbE Infrastructure

Solo10G T5 adapter is equipped with an RJ45 socket, enabling it to connect your computer to 10GbE infrastructure via inexpensive Cat 6 or Cat 6A copper cabling at distances up to 55 or 100 meters, respectively.

Why Choose Thunderbolt 5 for 10Gb Ethernet?

Thunderbolt Certified. Unlike typical USB4 adapters, Solo10G T5 is built on a trusted, Thunderbolt-certified platform with authenticated firmware, rigorous electrical validation, and broad compatibility testing across host systems and operating environments.

Low Power Requirement. Requiring no power adapter, Solo10G T5 consumes just 7.5 watts of bus power, leaving your computer enough power available to connect another bus-powered Thunderbolt device, such as a Thunderbolt 5 SSD.

Ideal Add-on. With Thunderbolt 5’s increased bandwidth and daisy-chain capability, Solo10G T5 connects seamlessly through a Thunderbolt dock or other Thunderbolt peripheral without becoming a bandwidth bottleneck.

Yes, It’s Compatible!

Solo10G T5 is compatible with all Apple M series Macs; Thunderbolt 5, 4, and USB4 Windows and Linux computers; and M series iPad Pro. See Tech Specs for current computer and OS compatibility information.

Security Centered: Certified Hardware. Authenticated Firmware. Trusted Networking.

Thunderbolt certification means that the Solo10G T5 adapter’s hardware-based, encrypted device firmware is part of a controlled, authenticated Thunderbolt implementation. Only verified manufacturer updates can make changes. Generic USB4 peripherals rely on alterable open firmware implementations that are not subject to the same Thunderbolt certification and authentication requirements, increasing supply-chain and endpoint-security concerns.

For organizations that take endpoint and network security seriously, the adapter connecting computers to the internal network should meet a higher standard. The Thunderbolt certified Solo10G T5 Ethernet adapter provides a superior level of confidence compared with uncertified USB4 alternatives.

Rugged. Silent. Pocketable.

Featuring a solid aluminum enclosure, Solo10G T5 is cool-running, so it doesn’t need a fan (unlike many USB4 10Gb Ethernet adapters). As a result, it’s not quiet, it’s silent. Measuring just 3.1 inches wide by 4.5 inches deep by 1.1 inches tall, the Sonnet adapter is small enough to drop into a spare pocket in your equipment bag.

Proven Design, Pro Quality

The original Solo10G Thunderbolt adapter became a best-selling 10Gb Ethernet adapter in professional video environments because of its proven reliability. Rather than reinventing a winning formula, Sonnet upgraded it with the latest Thunderbolt 5 technology while retaining the trusted Marvell 10GbE controller and stable drivers users rely on for dependable operation.

Easy Setup. No Hassle Configuration.

Connect the Solo10G T5 adapter to your computer and an Ethernet cable to the adapter connecting to the network switch (or directly to 10GbE-enabled storage). Configure the adapter’s settings through the macOS Network control panel, Windows Device Manager, or Linux command line (or graphical utility). Once configured, it just works.

Advanced Features. Intelligent Operation.

Built with intelligent hardware acceleration, the Solo10G T5 adapter maximizes network performance while minimizing system overhead. Advanced networking technologies improve throughput, reduce CPU utilization, and increase efficiency, helping your computer stay focused on demanding creative and professional workloads.

Multi-Gigabit Performance, No Rewiring Required

Already have Cat 5e cabling? You can still unlock dramatically faster speeds — up to 2.5x to 5x faster than standard Gigabit Ethernet — without upgrading your infrastructure. Solo10G T5 Thunderbolt 5 Adapter supports the NBASE-T standard, delivering 2.5Gb and 5Gb link speeds over existing Cat 5e (or better) cables when paired with a multi-gigabit compatible switch, router, or NAS. That means you can roll out a single Thunderbolt adapter across your organization and deliver high-performance networking — regardless of the cabling already in place.

AVB Support: Audio Video Bridging (IEEE 802.1Qav, AVB) support for macOS makes this adapter perfect for use in pro audio and video applications where synchronization of data streams is critical.

Captive and Replaceable Thunderbolt 5 Cable Included

Solo10G T5 adapter’s included cable supports Thunderbolt 5’s full PCIe bandwidth to ensure maximum performance. Through the use of a secured internal Thunderbolt connector, the cable remains firmly connected inside the adapter at all times. Should the need arise, you can easily install an approved replacement cable available from Sonnet or a Sonnet-authorized reseller.

Key Features & Specifications

• Adds 10GBASE-T 10GbE Connectivity – Adds an RJ45 10 Gigabit Ethernet port to your computer with Thunderbolt or USB4 ports.

• Cost-Effective 10GbE – Adapter connects to 10GbE infrastructure via inexpensive Cat 6 or Cat 6A cables at distances up to 55 or 100 meters, respectively.
• Thunderbolt Certified – Sonnet adapter is built on a trusted, validated platform with authenticated firmware, rigorous electrical testing, and broad compatibility verification across host systems and operating environments.
• Low Power Requirement – Designed as a 7.5W Thunderbolt device to help preserve limited bus-power resources on compact computers.
• Certified Security – Hardware-based encrypted firmware with authenticated, manufacturer-verified updates helps protect the Sonnet adapter from unauthorized changes.
• Thunderbolt 5 – More than enough PCIe bandwidth to support a 10Gb port at full speed. Latest Thunderbolt 5 technology is built to last.
• Rugged Construction, Small and Silent – Adapter features an aluminum enclosure that withstands heavy use. It is pocketable and uses no fan, perfect for use in noise-sensitive environments.
• Easy Setup – Configure the adapter's settings using operating system tools.
• Proven Design, Pro Quality – Features new Thunderbolt controller, same 10GbE controller and stable drivers, ensuring reliable operation across platforms.
• Multi-Gigabit/NBASE-T Support – 2.5 Gbps and 5 Gbps speeds supported over inexpensive Cat 5e (or better) cabling at distances up to 100 meters when used with a multi-Gigabit switch, router, or NAS.
• AVB-Compliant – Audio Video Bridging (IEEE 802.1Qav, AVB) supported with Mac computers.
• Replaceable Captive Thunderbolt 5 Cable Included – The adapter secures its cable inside the case, but allows you to easily replace it if necessary.

• Computer Compatibility – Mac, Windows, and Linux. See Tech Specs for computer and OS compatibility details.

• iPad Pro Compatibility – iPad Pro (M series). See Tech Specs for iPadOS compatibility details.
• Dimensions (WxDxH) – 3.1 x 4.5 x 1.1 in. (79.5 x 114x 27.2 mm)
• Weight – Solo10G T5 Thunderbolt 5 Adapter: 0.57 lbs. (0.26 kg); complete package: 0.74 lbs. (0.34 kg).
• Package Contents – Solo10G T5 Thunderbolt 5 Adapter (with 0.3-meter captive Thunderbolt 5 cable).

• Warranty – 2-year product warranty.
• Customer Support – Lifetime technical support.
• The Sonnet Advantage – Innovating technology since 1986.

Note: Computers and accessories featured in photos are not included with the product. Product specifications are subject to change without notice.
