xMac mini (2024+) Module

Part No. XMM-MOD


Mac mini Expansion

xMac mini (2024+)

Expansion Module for One or Two Mac minis. For Use in Sonnet Desktop and Rackmount Enclosures and Modular Expansion Systems.

Modular Expansion + Accessibility

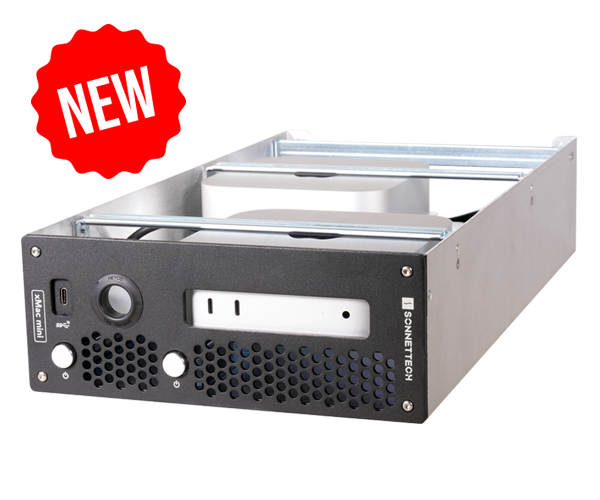

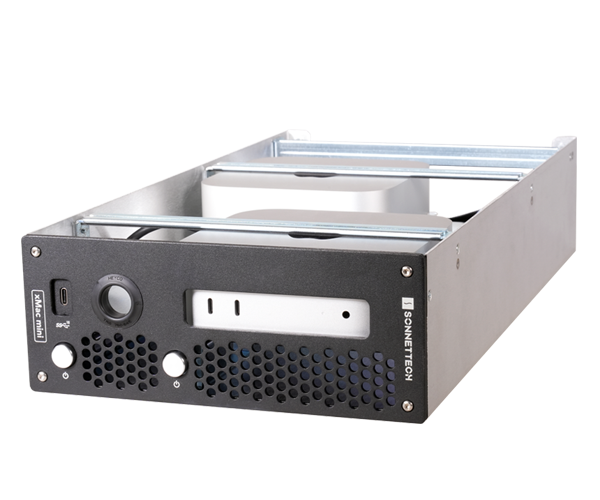

xMac mini (2024+) Module is the heart of Sonnet’s xMac mini (2024+) Enclosure Systems. The module securely holds one or two Mac mini (2024+) computers (sold separately) in a rugged steel frame, which is designed to install into a compatible Sonnet desktop or rackmount enclosure or modular expansion system. Front power buttons and connectivity as well as open access to the computer’s ports in back offers versatile accessibility.

Power Button to Each Computer
Front panel power buttons conveniently and reliably activate Mac minis’ bottom-mounted power switches.

USB-C Ports Access
Provides open access to the front panel ports of the front-mounted Mac mini, with a passthrough USB-C port to the rear-mounted Mac mini, if installed. The computers’ rear ports are easily accessible through the back of the module.


Cable Passthrough
Opening for connecting devices through front of enclosure.


Proper Airflow Management
Supports Mac mini thermal design, enabling them to draw in cool air through their bases and expel warm air out the back unimpeded without trapping them in recirculating hot rack air, keeping them as cool in a rack as out on a desk.


Power Hub
Connects the supplied power cable to a wall outlet or power strip and routes power to both Mac minis.


Space for SSD Storage
Space beneath the computers to place up to two external Thunderbolt or USB SSDs (sold separately).

Key Features

Mac minis not included

• Front to Back Airflow Management – Supports direct airflow through the Mac minis to keep them operating as cool as possible.
• Easy Access – xMac mini (2024+) Module is easily secured to the back of a rackmount enclosure using two thumbscrews and can be removed and reinstalled from the front of the enclosure.
• Makes Your Mac minis Road-ready – A rugged, steel-framed module with rubber-cushioned brackets securely holds Mac minis in place.
• Sonnet Product Compatibility – Desktop and rackmount enclosures and modular expansion systems.
• Mac Compatibility – Mac mini (2024+).
• Dimensions (WxDxH): 20 x 14 x 6.5 in. (50.8 x 35.56 x 16.51 cm).
• Weight: 7 lbs. (3.18 kg).
• Package Contents – xMac mini (2024+) Module; region-specific power cable; and documentation.
• Warranty – 2-year product warranty.
• Customer Support – Free lifetime customer technical support.
• The Sonnet Advantage – Innovating technology since 1986.

Note: Computers and accessories that may be featured in photos are not included with the product. Please refer to the Package Contents in the Key Features section for a list of included items. Product specifications and revisions, information, photos, and pricing are subject to change without notice.
