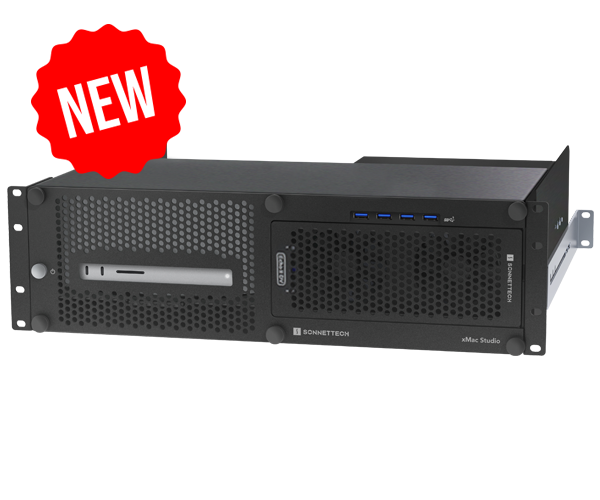

xMac Studio/Echo II DV T5 Enclosure System (2 PCIe slots expansion • Thunderbolt 5)

Part No. XMAC-STD-IIDVT5
(Enclosure with Echo II DV T5 Module)

Pro Rackmount System

xMac Studio/Echo II DV T5

Pro 3U Rackmount Enclosure with 2-slot Thunderbolt 5 to PCIe Card Expansion for Mac Studio

Your Workflow – Expanded and Secured

A Mac Studio delivers phenomenal processing power, outperforming computers many times its size and price – and includes a robust selection of ports. But how do you integrate a Mac Studio into off-the-desk professional workflows and expand its connectivity beyond what’s available out of the box?

Sonnet xMac Studio/Echo II DV T5 integrates a Mac Studio (sold separately) into a compact, rugged steel 3U rackmount enclosure with a 2-slot Thunderbolt™ to PCIe card expansion module to support diverse audio and video application workflows that require high-bandwidth DV I/O PCIe cards.

Designed for High-bandwidth Card Support: Run Two DV I/O Cards Simultaneously at Full 6000 MB

For many creative professionals, PCIe card expansion for connecting specialty I/O and processing cards to handle audio and video post-production projects is not an option — it’s a necessity! Sonnet designed xMac Studio/Echo II DV T5 for professional workflow’s that require full bandwidth performance. The xMac Studio/Echo II DV T5 provides space to securely house a Mac Studio with Sonnet’s Echo II DV T5 2-slot PCIe card expansion module preinstalled in the enclosure’s expansion bay.

Features two PCIe 4.0 slots and supports PCIe cards ranging from low-profile, half-length to full-height, full-length sizes. The Echo II DV T5 expansion module supports virtually all Thunderbolt-compatible, non-GPU PCIe cards. For a list of supported PCIe cards refer to Sonnet’s PCIe Compatibility Chart.

Dual 80 Gbps Thunderbolt 5 Interfaces
Offers four 80 Gbps Thunderbolt 5 ports, with dual 80 Gbps Thunderbolt 5 interfaces (one per slot) delivering 6000 MB/s of PCIe bandwidth to each PCIe card.

400W of Power
Built-in 400W power supply (with 75W aux. power connector) supports power-hungry cards including Avid Pro Tools | HDX, AJA Kona 5, Blackmagic DeckLink 4K Extreme 12G, and DeckLink 8K Pro G2, and Deltacast 12G/4C cards. Systems power on and off automatically with the connected Mac Studio.

Quiet Operation
Dual temperature-controlled, variable-speed Noctua fans (rated at 17 dBA) offer ultra-quiet operation.

Control and Connect – Easy Access to Mac Studio and PCIe Card Expansion Module

xMac Studio/Echo II DV T5 places your Mac Studio behind a quick and easy to remove front panel. Convenient front panel operation allows you to turn on the computer with its own dedicated front power button, connect USB devices through a 4-port USB-A hub, and access the Studio’s front ports and SD card slot. Three rear panel locking thumbscrews allow you to easily pull out and access the Echo II DV T5 Module and PCIe cards through the front without removing the front panel. The xMac Studio design enables you to connect and disconnect cables without needing to remove the computer from the enclosure.

xMac Studio/Echo II DV T5 is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS device control apps.

Cool Design. Go with the Airflow – Supports the Mac Studio Thermal Design.

xMac Studio/Echo II DV T5 secures your Mac Studio without trapping it in recirculating hot rack air, supporting its thermal design to keep it as cool in a rack as out on a desk. Ventilation holes on the enclosure’s front panel plus an enclosed chamber beneath the Mac Studio ensures the computer’s ability to draw in cool air through its base, while a completely open back enables it to expel warm air out the back unimpeded.

Space for SSDs – Secure Two Thunderbolt or USB SSDs Under the Mac Studio

xMac Studio/Echo II DV T5 provides space beneath the computer to house two Thunderbolt or USB SSDs (sold separately) up to 3.2 inches wide by 0.75 inch tall. Simply remove the rear access panel, apply the supplied adhesive-backed magnet to the bottom of the SSDs, insert the SSDs and connect them to the computer, and then reinstall the panel. The space is also suitable for other thin, bus-powered devices.

Road Trip Ready – Workflows on the Go

Do you need to take your workflow on the road? xMac Studio/Echo II DV T5 is a perfect travel solution. Its 16.5-inch mounting depth – plus firm rubber cushions that securely hold your Mac Studio in place during transport – make xMac Studio/Echo II DV T5 is ideal for use in molded rack cases from Gator Cases, fly racks from SKB Cases, or most any travel rack.

Key Features & Specifications

• Compact and Rugged – 3U rackmount steel enclosure securely houses a Mac Studio with a pre-installed Echo II DV T5 expansion module.
• Echo II DV Module T5 – Supports two high-bandwidth, full-height, full-length non-GPU PCIe cards, such as Avid Pro Tools | HDX cards. For card compatibility, refer to Sonnet’s PCIe Cards Compatibility Chart. Expansion module features two PCIe 4.0 slots, four 80 Gbps Thunderbolt 5 ports with dual 80 Gbps Thunderbolt 5 interfaces, 400W power supply, and dual Noctua quiet fans (rated at 17 dBA).
• Makes Your Mac Studio Road-ready – 3U rackmount enclosure with firm rubber cushions securely holds the Mac Studio and Thunderbolt expansion module in place, adding mobility to your workflow.
• Ideal for Use in Server Rooms – Standard mounting holes and included adjustable rack rails enable easy installation into any standard server rack up to 24" deep.
• Front to Back Airflow Management – Supports direct airflow through the enclosure, Mac Studio, and Echo II DV T5 Module to keep them operating as cool in a rack as on a desk, even when xMac Studio is mounted between two other rack-mounted components.
• Front Panel Power Button and Integrated USB-A Ports – Front panel button enables operation of the computer’s rear-mounted power switch; integrated USB-A hub connects four USB peripherals to the Mac Studio.

• Easy Access – No tools requiredl; removable front panel secured with thumbscrews allows easy installation of and access to the Mac Studio. Secured with three thumbscrews on the back, the Echo II DV T5 Module can be removed and reinstalled through the front of the enclosure without removing the front plate.
• Open Slot and Port Access – Provides access to the computer’s SD card slot and front and back panel ports, enabling you to connect and disconnect cables easily.
• Space for Storage – Behind a covered opening beneath the computer is a space to place two Thunderbolt or USB SSDs (sold separately); two included adhesive-backed magnets secure them in place.
• Compatibility – Compatible with Mac Studio. See official product page Tech Specs for latest compatibility information.
• Dimensions (WxDxH) – 19 x 16.5 x 5.2 in. (48 x 41.9 x 13.3 cm).
• Weight – 21 lbs (9.53 kg).
• Space for SSD Maximum Height – 0.7 in (18 mm) inserted from rear; 0.9 in (23 mm) inserted from front.
• Package Contents – xMac Studio Enclosure with Echo II DV T5 Module; region specific power cable; two 6-pin auxiliary power cables; two 0.8-meter Thunderbolt 5 cables; two ThunderLok-A connector locks (for securing Thunderbolt cables); extension rails (for rack depth 16-24 inches); two adhesive-backed magnets (for mounting portable SSDs); and documentation.
• Warranty – 2-year product warranty.
• Customer Support – Lifetime technical support.
• The Sonnet Advantage – Innovating technology since 1986.
