Echo III Expansion Module (3-Slot PCIe card expansion module for Echo and DuoModo expansion enclosures)
Part No. DM-MOD-E3.
(Module only; enclosure sold separately)

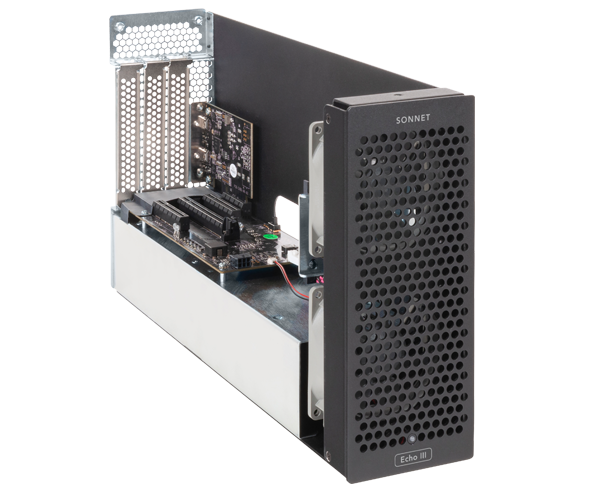

Echo III Expansion Module
3-slot Thunderbolt to PCIe Card Expansion Module
Echo™ III Module connects up to three PCIe cards to computers without card slots. The module supports three full-height, full-length Thunderbolt™-compatible non-GPU PCIe cards; provides 400W of power for the most demanding of PCIe cards, including qualification from Avid for Pro Tools | HDX PCIe cards; features quiet, dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.
View PDF of supported PCIe cards
Key Features
Three Versatile PCIe Slots
- Supports Three Full-height, Full-length PCIe Cards
- One x16 Plus Two x8 PCIe 3.0 Slots
- Supports Every Thunderbolt-compatible non-GPU Card
- AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
- View PDF of Supported PCIe Cards
400W of Power
- Built-in 400W Power Supply with 75W Auxiliary Power Connector
- Supports Power-hungry, non-GPU Cards Including Avid HDX
- Powers On and Off Automatically with Connected Computer
Quiet Fans
- Dual Noctua Fans Offer Ultra-quiet Operation
- Temperature-controlled, Variable-speed
- Rated at 17 dbA
40Gbps Thunderbolt Interface
- Two Thunderbolt 3 Ports
- 40Gbps Thunderbolt Interface Offers 3000 MB/s of PCIe Bandwidth with Thunderbolt 4 computers; 2570 MB/s with Thunderbolt 3 computers
- Thunderbolt Cable Included
- ThunderLokk Thunderbolt Connector Retainer Clip Included
Compatibility
- Compatible with DuoModo Desktop and Rackmount Expansion Enclosures.
- Compatible with Mac, Windows, and Linux. See Product Page Tech Specs for Full Compatibility Information and Requirements.
Why Sonnet?
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed and Made In the USA
